PRODUCTS

Industrial Eletric Motors

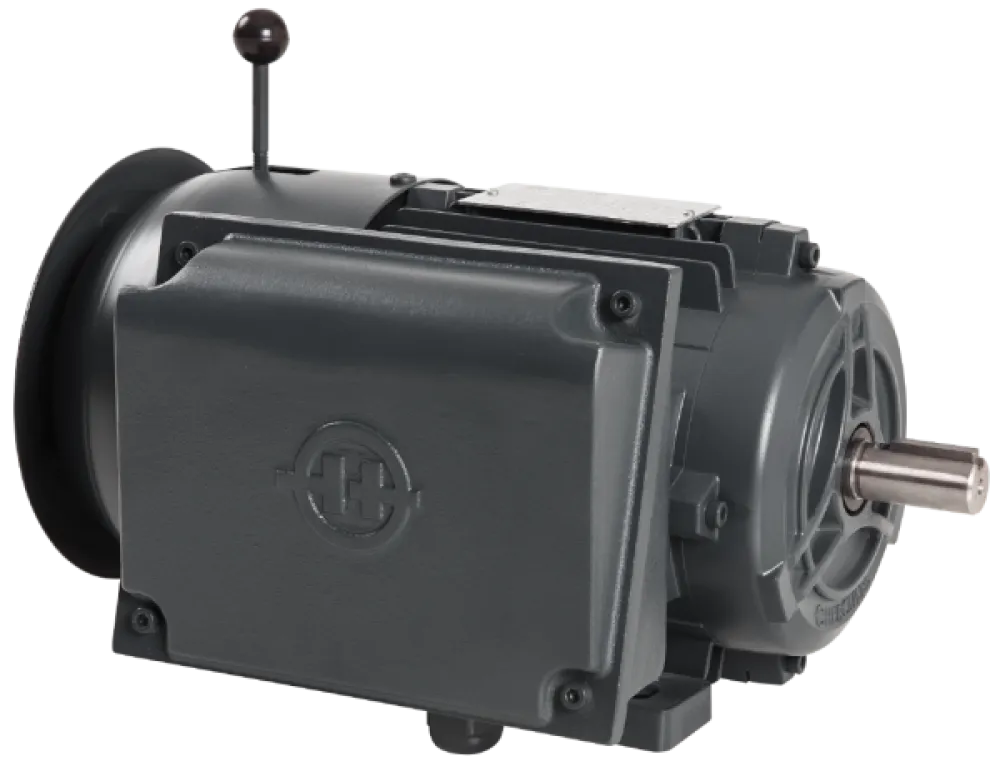

Brake Motor Line IP 55 - IR2 with Lever and Hat

Designed to be used in equipment that will require fast stops due to safety reasons, precise positioning and time savings. With three connection systems, allowing for slow, medium, and fast braking, this motor may be mounted in any position, provided that the brake is not subject to excessive penetration of water, oil, or abrasive dusts.

Electromagnetic brake with brake lining, whose friction promoted less wearing, providing your equipment with a safe braking and longer durability.



AVAILABLE POTENCES

0,5CV to 5CV | 2 and 6 POLES

FEATURES

Sealed bearings with V’Ring;

Outlet drain for condensed water;

Cable outlet sealed with self-extinguishable foam;

Ball bearings;

Dual rotation direction;

Usually closed brake

N Category;

Voltage: 220/380 V;

Number of Poles: 2 to 6

Frequency: 60 Hz

Paintwork: Grey RAL7026;

Brake cooled by the metal ventilation system


OPTIONALS UNDER CONSULTATION

Special color painting;

PTC Thermistor;

Thermostat (bi-metallic thermal protector);

Constructive forms as per standard ABNT NRB 60034-7;

Frequency 50Hz;

Shaft with special dimensions;

Terminal board;

Special supply voltages;

Cable glands;

D Category;

Special bearings;

Insulation class H;

STAINLESS steel shaft;

Retainer;

Resistance to heating.
